DCM-RRO.6 Rolling Road O Gauge Premium Edition – 6 Axle
Premium O Gauge Rolling Road

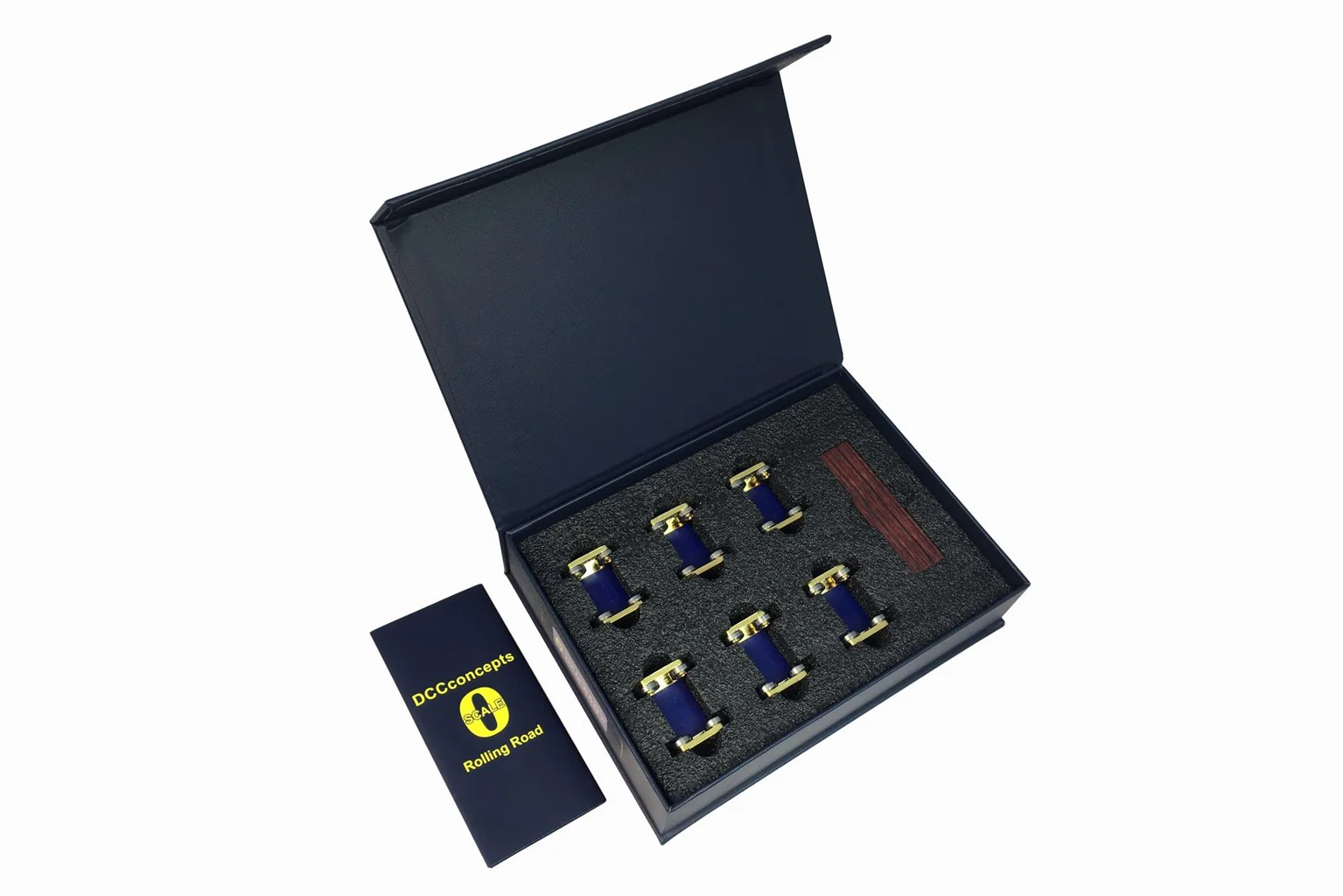

Pack Contents 6-Roller Set Rolling Road. DCM-RRO.6. This pack contains the following components
- 6 x Roller sets for O scale 32mm gauge track
- 3 x Etched Magnetic Metal plates
Our O Gauge Rolling Road is designed to be very easy to use and exceptionally reliable. We use only high quality materials so you can expect many years of trouble-free use.
Installation and use.
DCCconcepts Rolling Road works well with AC. DC & DCC. O scale locos come with varying wheelbases, and it can be hard to hold them and adjust roller spacing at the same time. so we were careful to make this easy for you.
- Every Roller set contains a strong Neodymium magnet to hold it in place while allowing easy adjustment.
- To give the magnets something to work with, we have also included some etched “magnetic plates” to secure to the track. (These have been etched to represent wooden planks so you can install them on your layout)
- Simply secure these plates in an appropriate position on the top of the sleepers and between the rails. We recommend using silicone or a contact-type adhesive.
- Once the plates are secured, place the Roller sets over them at an appropriate spacings and connect the track power. The Roller sets will collect power directly from the rails so you are now ready to go.

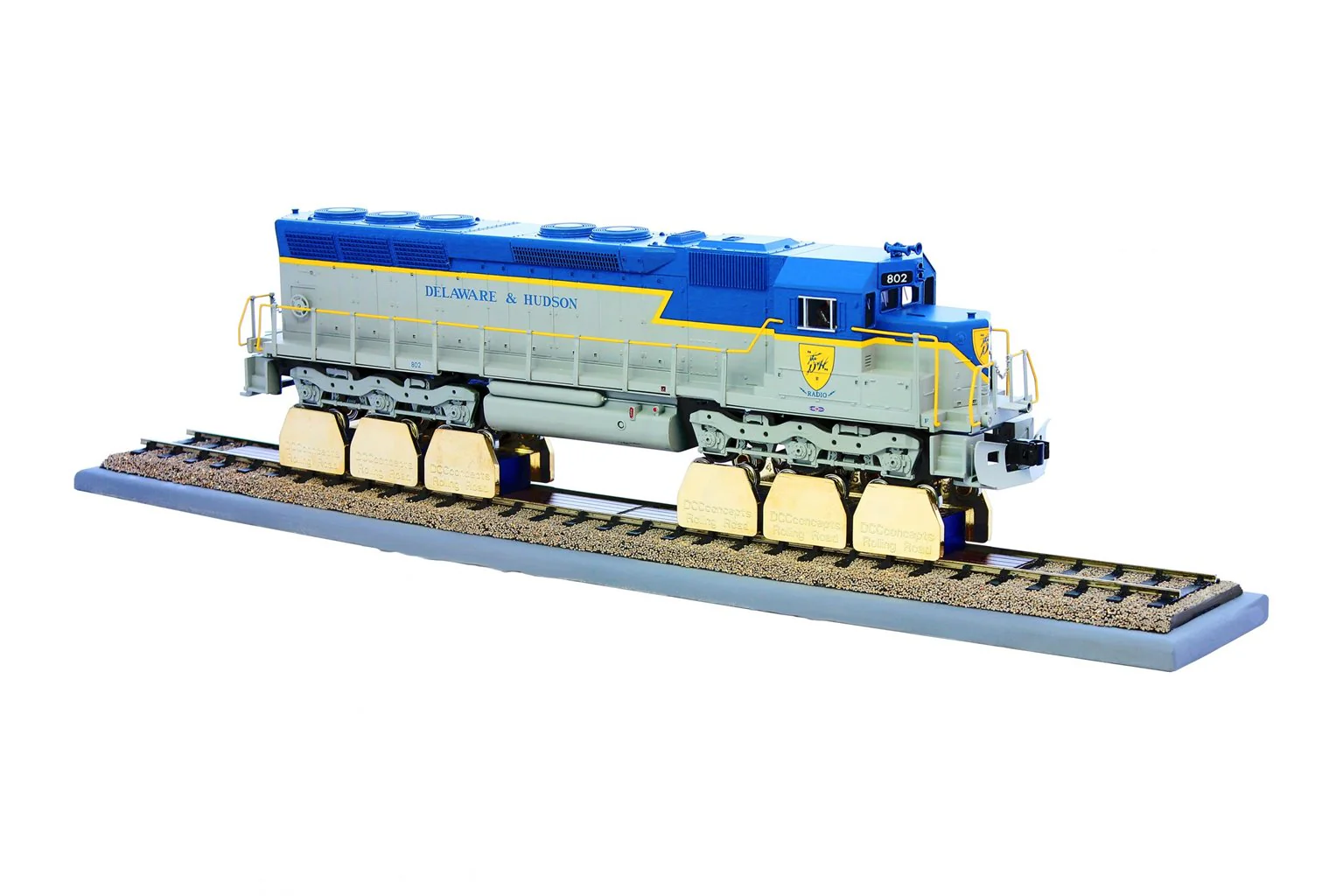

- Place your locomotive on top of the Roller sets and control it as if it was on the track. It will operate in place allowing examination for service, careful adjustment of decoder set-up or running in of a new Loco.
Service and Maintenance.
- Keep the track area that will be used with your rolling road clean so that it can transfer the power reliably.
- DCCconcepts Roller sets have been gold plated, so they will never tarnish and always conduct power reliably. (Please – do not use abrasive cleaners. A quick wipe with alcohol or similar is all that will ever be needed)
- The stainless-steel roller-bearings are pre-lubricated but you can of course add a little fine oil if you wish.
PLEASE NOTE LOCOS NOT INCLUDED
Instructions in English
Original: $161.89
-70%$161.89
$48.57Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Premium O Gauge Rolling Road
Pack Contents 6-Roller Set Rolling Road. DCM-RRO.6. This pack contains the following components
- 6 x Roller sets for O scale 32mm gauge track
- 3 x Etched Magnetic Metal plates
Our O Gauge Rolling Road is designed to be very easy to use and exceptionally reliable. We use only high quality materials so you can expect many years of trouble-free use.
Installation and use.
DCCconcepts Rolling Road works well with AC. DC & DCC. O scale locos come with varying wheelbases, and it can be hard to hold them and adjust roller spacing at the same time. so we were careful to make this easy for you.
- Every Roller set contains a strong Neodymium magnet to hold it in place while allowing easy adjustment.
- To give the magnets something to work with, we have also included some etched “magnetic plates” to secure to the track. (These have been etched to represent wooden planks so you can install them on your layout)
- Simply secure these plates in an appropriate position on the top of the sleepers and between the rails. We recommend using silicone or a contact-type adhesive.
- Once the plates are secured, place the Roller sets over them at an appropriate spacings and connect the track power. The Roller sets will collect power directly from the rails so you are now ready to go.
- Place your locomotive on top of the Roller sets and control it as if it was on the track. It will operate in place allowing examination for service, careful adjustment of decoder set-up or running in of a new Loco.
Service and Maintenance.
- Keep the track area that will be used with your rolling road clean so that it can transfer the power reliably.
- DCCconcepts Roller sets have been gold plated, so they will never tarnish and always conduct power reliably. (Please – do not use abrasive cleaners. A quick wipe with alcohol or similar is all that will ever be needed)
- The stainless-steel roller-bearings are pre-lubricated but you can of course add a little fine oil if you wish.
PLEASE NOTE LOCOS NOT INCLUDED
Instructions in English
